Product part number:
876-ENS-02-50

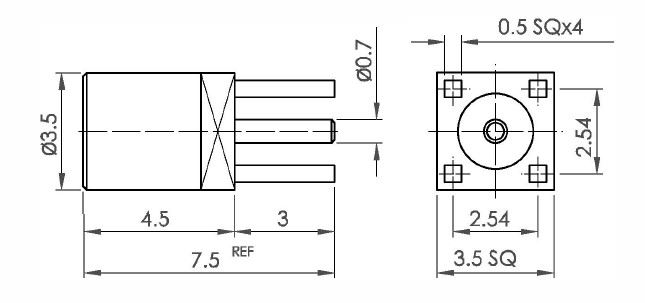

MMCX PCB mount female coax. connector
Low return loss by measurement.
High performance with operation.
High quality for various applications.
Specifications
Remark
Notes
Product
MMCX PCB mount female coax. connector
Frequency
0~6GHz
Impedance
50ohm
Body
Brass
Center contact
male: Brass / female: Beryllium Copper
Insulators
PTFE
V.S.W.R
straight 1.3max / R.A 1.5max
Insulator resistance
>1000 Megohms
